SPECIFICATION
| Standard(s) | BS 5733 |
| Rating | 45Amp 250V~ |
| Mounting Box Depth(Min) | 35mm |
| Fixing Centres | 60.3mm |
| Size | 86mmx86mmx7.5mm（Plate thickness） |
| Product Class 1 | Face plate must be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| IP Rating | IP2XD |

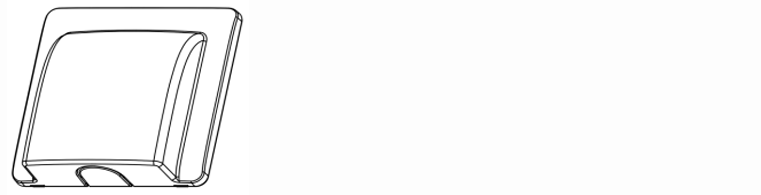

LINE DIAGRAM
