ST4221M

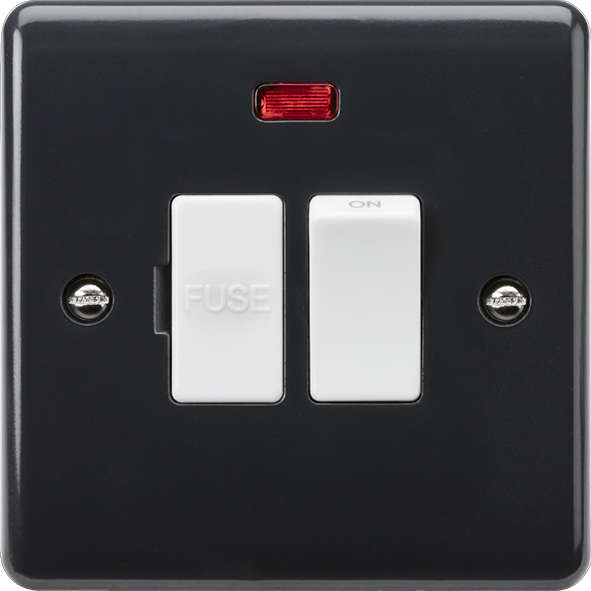

13A Switched Fused Spur With Neon And Fex Outlet Fom Base [Part M Compliant]
SPECIFICATION
| Standard(s) | BS 1363 |
| Rating | 13 Amp, 250V~ |
| Switch Type | Double Pole |
| Contact Gap | Normal Gap |
| Terminal Capacity | 3x 2.5mm² ,3x 4.0mm²，2x 6.0mm² |
| Mounting Box Depth(Min) | 25mm |
| Fixing Centres | 60.3mm |
| Size | 86mmx86mmx7mm（Plate thickness） |
| Product Class 1 | Face plate does not need to be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| IP Rating | IP2XD |
LINE DIAGRAM
