SPECIFICATION
| Standard(s) | BS EN 60669-1 |
| Rating | 20 Amp, 250V~(20AX – no derating for inductive or fluorescent loads) |
| Switch Type | Single Pole |
| Contact Gap | Normal Gap |
| Terminal Capacity | 4x 2.5mm² , 2x 2.5mm² & 1x 4.0mm² |
| Size | 25mm x 55mm x 30mm |
| Mounting Box Depth(Min) | 35mm |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| Ambient Operating Temperature | -5° to +40°C |
| IP Rating | IP2XD |

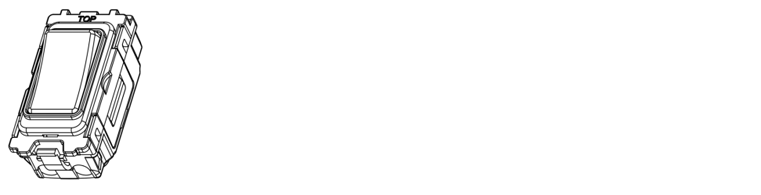

LINE DIAGRAM
